I.What certification is required for explosion-proof products in China?

In China, there are 3 types of explosion-proof certification based on the applicable environment for explosion-proof products.

1. Explosion-proof Certification

（1）Applicable products: Electrical and non-electrical equipment used in non-mining areas with explosive gases and dust (excluding explosion-proof 3C product catalog)

（2）Processing: Product testing

（3）Certification: Explosion proof Certification

（4）Standards: GB/T 3836 series

（5）Certificate validity: 5 years

（6）Annual review: None

（7）Issuing bodies: more than ten qualified explosion-proof certificate issuing agencies, such as Nanyang CQST, Shanghai NEPSI, Tianjin PCEC,Guangzhou CQC,Liaoning Clex, Coal Science Institute, etc.

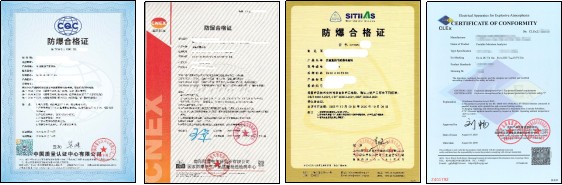

（8）Template

2.Explosion proof CCC certification

（1）Applicable products: Electrical equipment for explosion-proof 3C catalog

（2）Processing: Product testing+factory aduit

（3）Certification: CCC certification

（4）Standards: GB/T 3836 series

（5）Certificate validity: 5 years

（6）Annual review: Once a year

（7）Issuing bodies: 6 explosion-proof CCC issuing agencies, Nanyang CQST, Shanghai NEPSI, Tianjin PCEC, CQC, CQM, and Jiamusi.

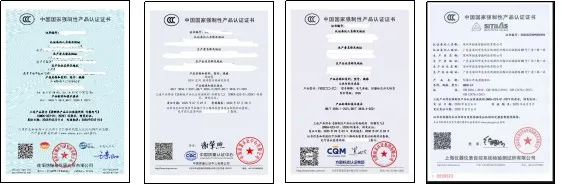

（8）Template

3. MA certificate

（1）Applicable products:explosion-proof equipment used in mines

（2）Processing: Product testing+factory aduit

（3）Standards: GB/T 3836 series and mining standards

（4）Certification: MA Certification

（5）Certificate validity: 5 years

（6）Annual review: Once a year

（7）Issuing body: China Mining Products Safety Approval and Certification Center

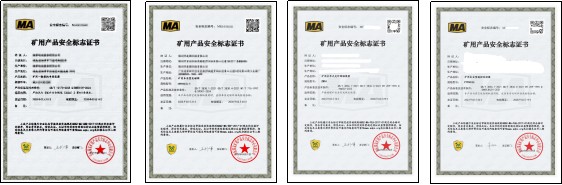

（8）Template

II.Standard lists of China Ex Certificate

（1）GB/T 3836.1-2021 Explosive atmospheres - Part 1: Equipment - General requirements

（2）GB/T 3836.2-2021 Explosive atmospheres - Part 2: Equipment protected by flameproof enclosures "d"

（3）GB/T 3836.3-2021 Explosive atmospheres - Part 3: Equipment protected by increased safety "e"

（4）GB/T 3836.4-2021 Explosive atmospheres - Part 4: Equipment protected by intrinsic safety "i"

（5）GB/T 3836.5-2021 Explosive atmospheres - Part 5: Equipment protected by pressurized enclosures "p"

（6）GB/T 3836.6-2017 Explosive atmospheres - Part 6: Equipment protected by oil immersion "o"

（7）GB/T 3836.7-2017 Electrical equipment for explosive gas atmospheres - Part 7: Sand-filled type "q"

（8）GB/T 3836.8-2021 Explosive atmospheres - Part 8: Equipment protected by type "n"

（9）GB/T 3836.9-2021 Explosive atmospheres - Part 9: Equipment protected by encapsulation "m"

（10）GB/T 3836.31-2021 Explosive atmospheres - Part 31: Equipment protected by dust ignition-proof enclosures "t"

（11）GB/T 3836.22-2023 Explosive atmospheres - Part 22: Protection measures for optical radiation equipment and transmission systems（12）

（13）GB/T 3836.28-2021 Explosive atmospheres - Part 28: Non-electrical equipment for explosive atmospheres - Basic methods and requirements

（14）GB/T 3836.29-2021 Explosive atmospheres - Part 29: Non-electrical equipment for explosive atmospheres - Constructional safety type "c", control of ignition sources type "b", oil-immersed type "k"

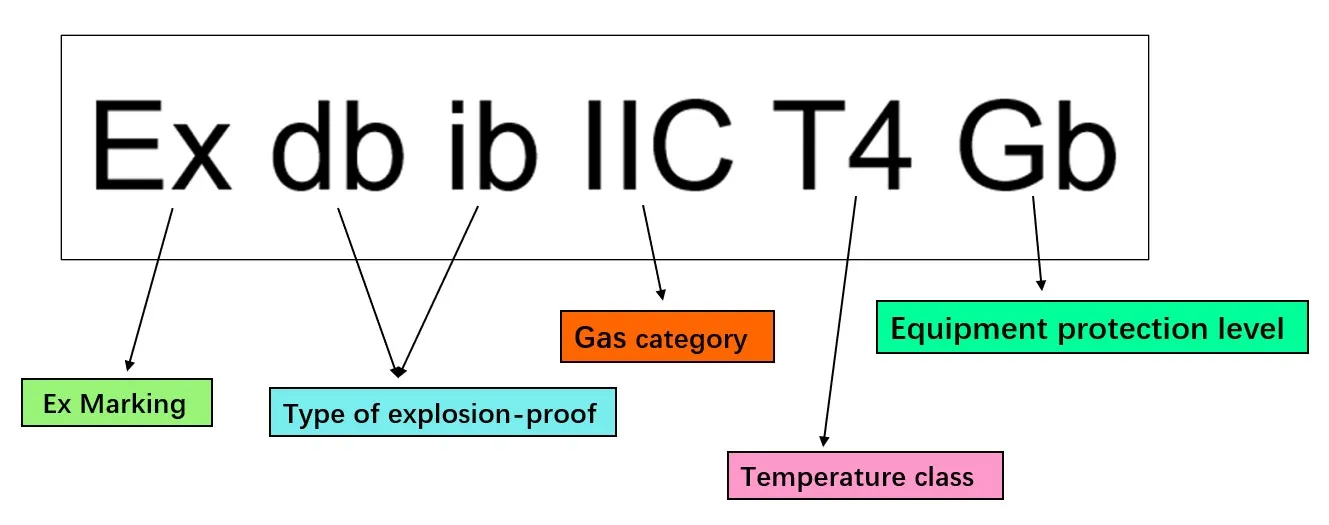

 III.Ex Marking

VI.the requirements for applying for a China Ex Certificate

（1）Technical Documentation：including schematic diagrams, assembly drawings, structural drawings, BOM (Bill of Materials)，etc

（2）User Manual

（3）Enterprise standards

（4）Other：battery specifications, wireless transmission power reports, potting process documents, housing material reports, and Ex Certificates for electrical components,etc.

（5）Samples：2 pcs complete samples

（6）Additional： battery, housing samples, unsealed circuit boards, piezoelectric components, etc.

The above data and samples are provided based on the actual certificate requirement.

VII. Consulting agency for China Ex Certificate

Shenzhen Sino Testing Service Co.,Ltd（STS）,has long focused on the field of explosion-proof certificate. We are well-versed in the design and certificate requirements of the Chinese standard GB/T 3836 series. With a thorough understanding of the certification process, we can provide customers with design and modification guidance for intrinsically safe circuits, flameproof enclosures, and positive pressure structures, assist in compiling certification drawings and documents, and offer full-process agency services for certificate acquisition.

Feel free to contact us at any time.
